Stemma is a browser-based viewer and editor for GEDCOM files, the format every genealogy program exports. Load a .ged (or JSON/YAML) file, read the tree as a classical chart, a force graph or an orbitable 3D scene, edit people and families, and save it back out. It is a static page with no backend: the file is parsed in the tab and never uploaded.

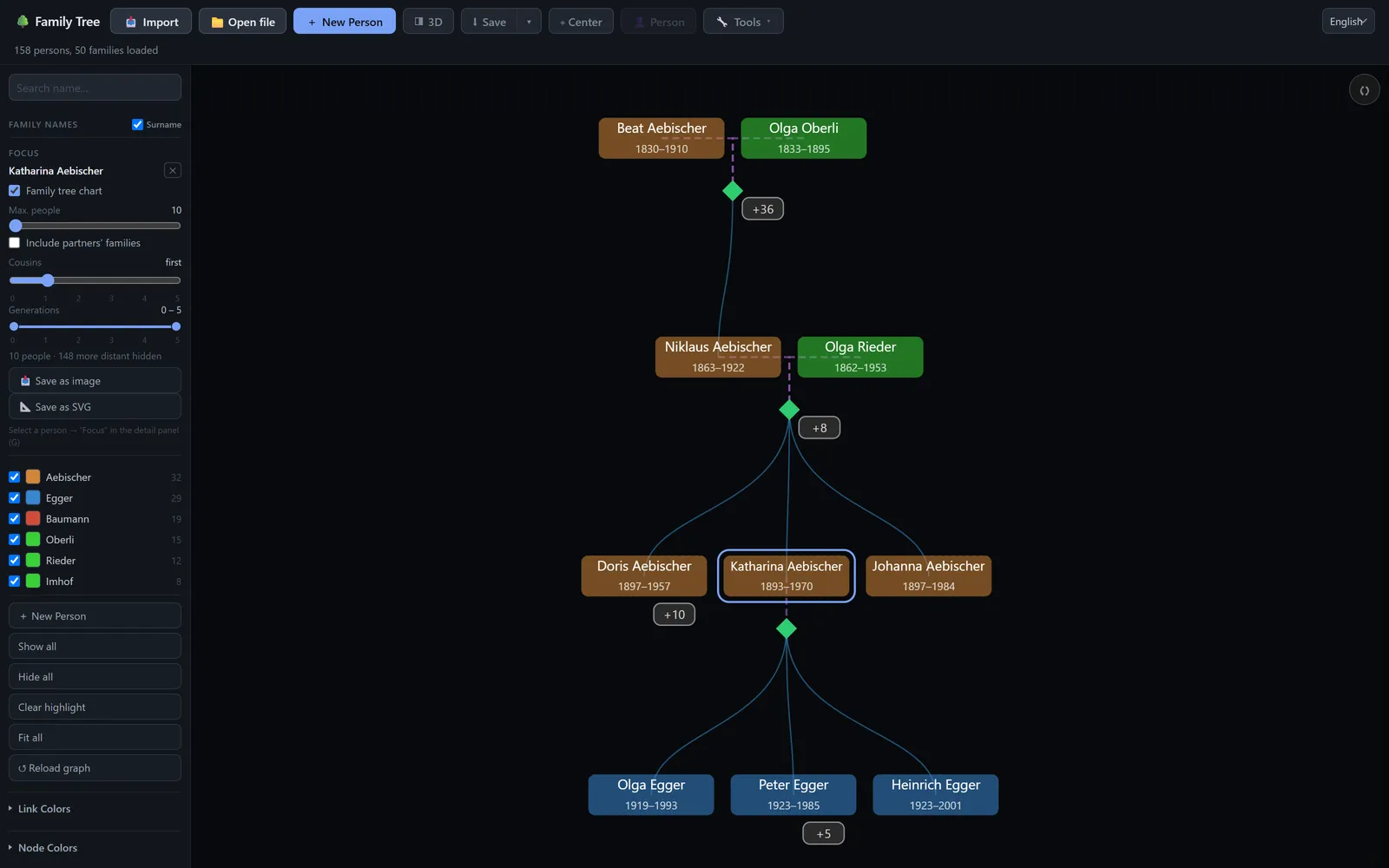

Family tree chart focused on one person, showing parents, grandparents, siblings and children with birth and death years

Focus mode: one person plus relatives out to a chosen distance, with a badge counting the relatives folded away behind each link.

Motivation

Our family tree existed as a scanned chart and a PDF, and every desktop genealogy program I tried wanted a catalog, an install and a licence before it would show me anything. I wanted to open the file, see the shape of it, and fix the wrong birth year I had just spotted, without any of that. So the whole thing is one static page: open it, drop the file in, and everything happens in the tab.

The tree is also too big to read at once. About 160 people already make a chart nobody can follow, which is why most of the work went into the views: a focus mode that narrows to one person and their relatives, a 3D scene that stacks generations along time, and a map that plays the family moving across a century.

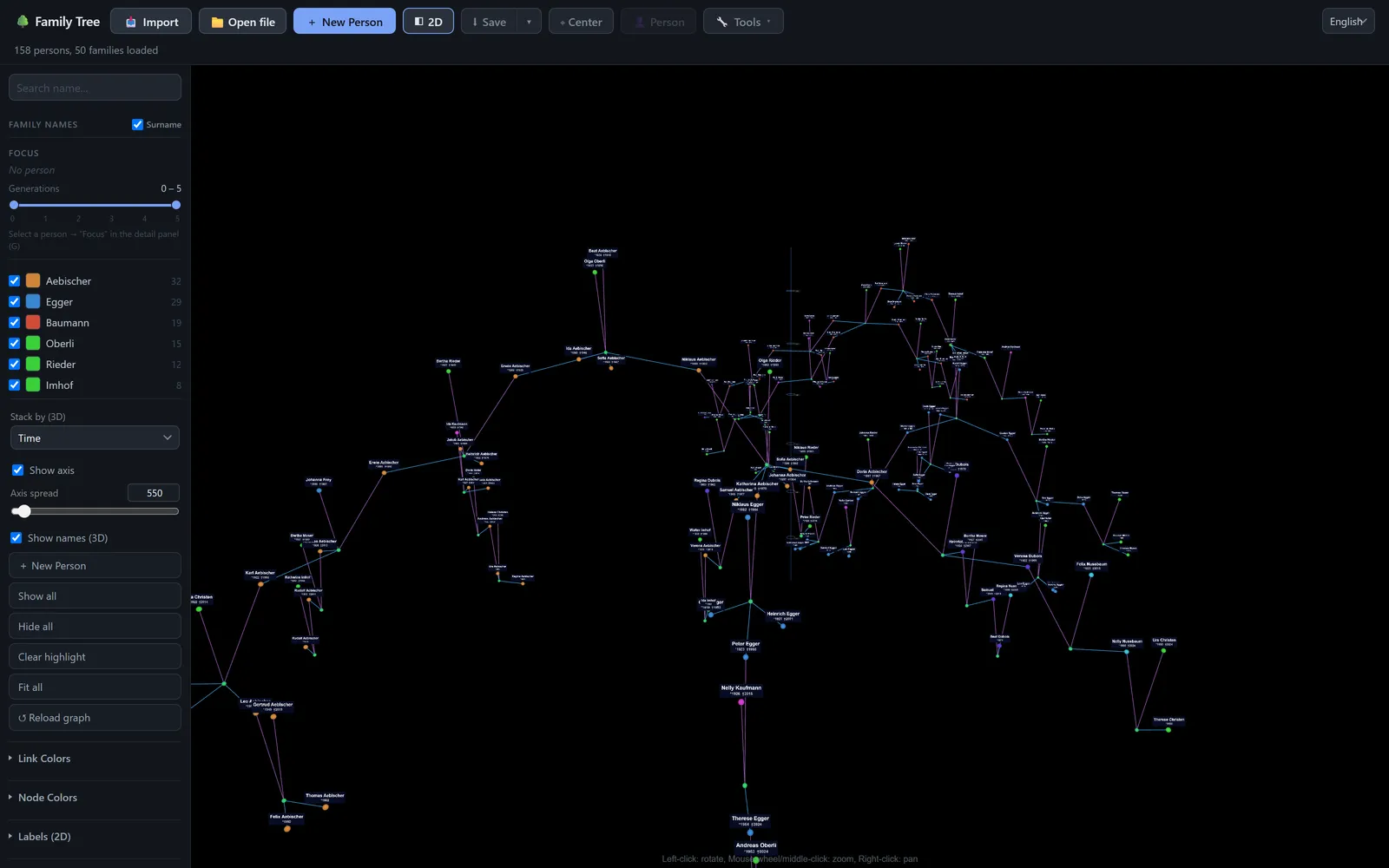

The same tree as a 3D force graph, generations stacked along a vertical time axis

The 3D view stacks people along a time axis and lets you orbit the result. Large trees switch to instanced rendering and a distance cull.

Features

  • Three views of the same data: a classical family tree chart, a force graph for when the chart's rows get in the way, and a 3D scene stacked by time or generation that you can orbit
  • Focus mode: narrow the tree to one person and relatives out to a chosen distance, with counts of what is hidden behind each link so nothing disappears silently
  • Map over time: every birth, death and marriage that names a place, plotted with a year range you can sweep to watch the family move. Missing coordinates are looked up one at a time and, once you tick them, written into the records as standard PLAC/MAP subtrees so the next load needs no lookup at all
  • Editing with a change log: click a person or family to edit, add parents, spouses and children. A field-level log lists everything changed since the file was opened, which is exactly what a save will write
  • Import from awkward sources: merge another GEDCOM, JSON or YAML file with a review step, or parse plain text and scanned charts (OCR) into records
  • Statistics: lifespans, ages at marriage, children per family, births per decade, data coverage, each one clickable down to the people behind the number
  • Working file: in Chromium browsers the last file can be reopened and saved back over in place; everywhere else saving falls back to a download

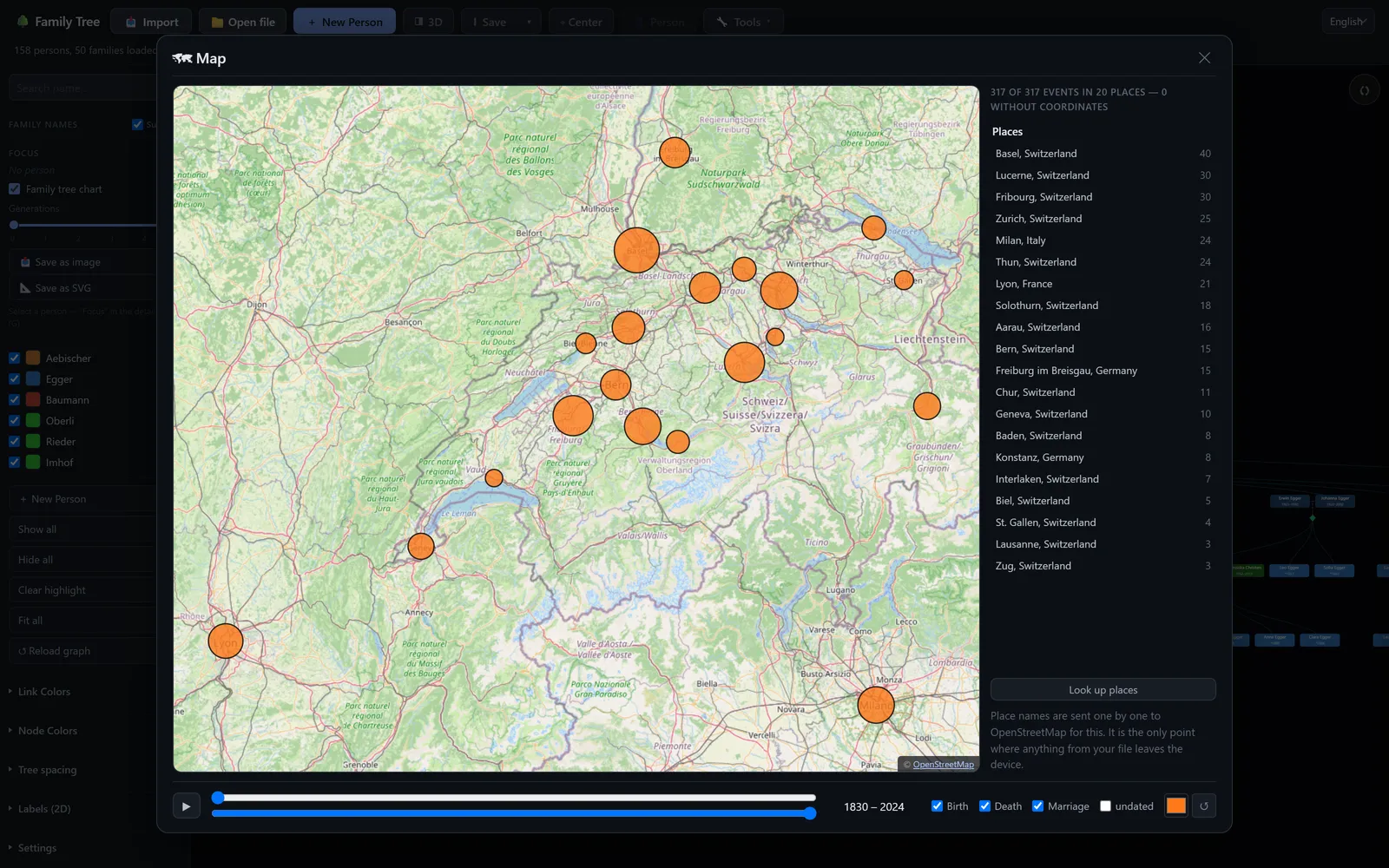

Map of Switzerland with orange circles over cities, sized by how many family events happened there

The map: circles sized by event count, a year slider that plays through, and a places list that lets you correct a bad geocode.

Tech Stack

  • Vanilla JavaScript as native ES modules, no framework and no build step. python -m http.server is the entire toolchain
  • D3 for the 2D chart and force simulation, three.js and 3d-force-graph for the 3D scene, both vendored so the page has no CDN dependency
  • A hand-written GEDCOM parser and serializer that round-trips the lines it does not understand, so saving never silently drops what another program wrote
  • OpenStreetMap tiles and Nominatim for the map, Tesseract.js for OCR imports, all opt-in and none of them touched on load
  • localStorage for settings and an autosave slot, with every setting declared in one registry that validates stored values against their declared range
  • Plain Node test suites over jsdom, no framework

The one architectural decision worth naming is that the file is the state. There is no database and no session: the parsed tree lives in memory, the change log diffs it against what was loaded, and a save serializes it straight back to GEDCOM. Everything else is a view of that.

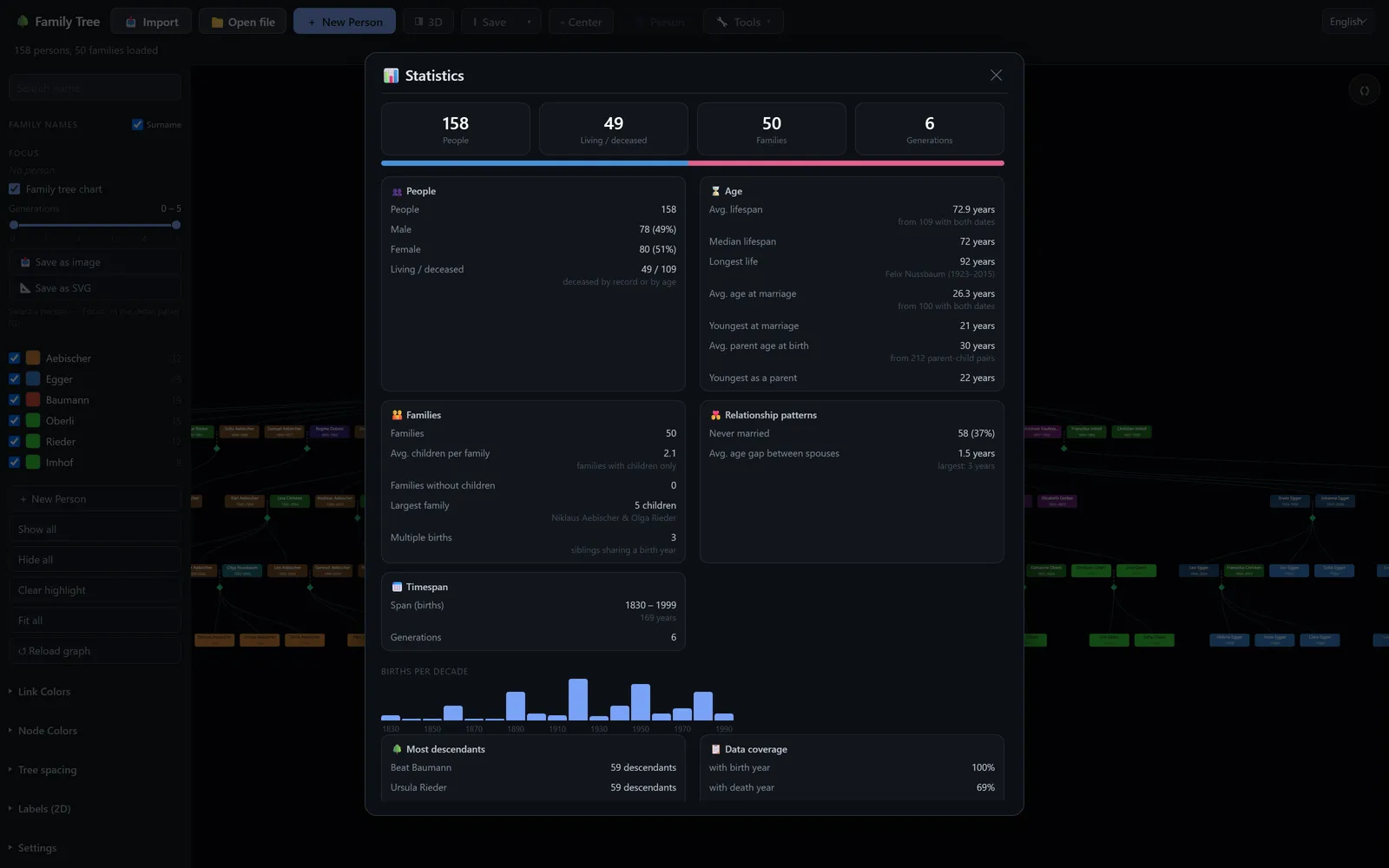

Statistics panel showing counts, average lifespan, family sizes and a births-per-decade histogram

Statistics over the whole tree. Every figure drills down into the list of people it came from.

Links

Stemma runs at stemma.lucafluri.ch; open it and drop a .ged file in. The source code is available on GitHub.
