Interactive LED Table
PERSONAL
Interactive LED Table created as part of my Matura project in 2015. The dead pixel has been fixed.
Overview
The LED Table was an interactive light installation created as my high school graduation project (Matura). It featured a grid of individually addressable RGB LEDs embedded in a custom-built table, controlled by an Raspberry-Pi. It was my first hardware and software project.
Features
- 10x10 grid of individually addressable RGB LEDs
- Multiple interactive modes, animations and games (tetris, snake, chess)
- Sound reactivity with built-in microphone
- Custom-built wooden enclosure with frosted acrylic surface
- Multiple Clockfaces
- Scrolling Text with custom 10x10 font
- Custom Chess application that allows two players to play chess against each other and replay chess games.
- Wireless control via smartphone app (basic Kivy application)
Images

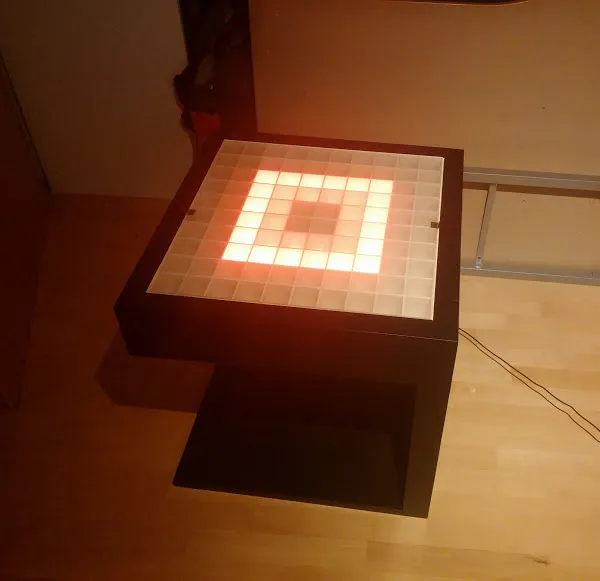

Full LED Table

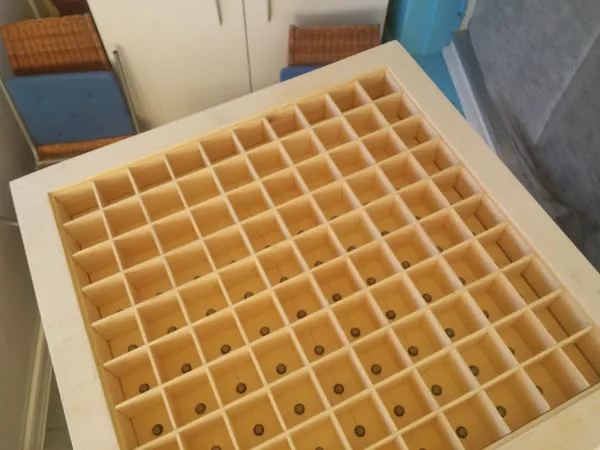

Grid below the milky LED diffusor to reduce light bleed
